Place of Origin:
china
Brand Name:
DSSD
Certification:
iso,tuv
Model Number:
kaplan turbine
Contact Us

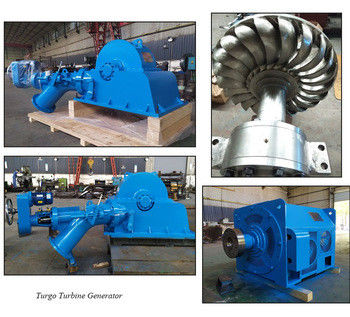

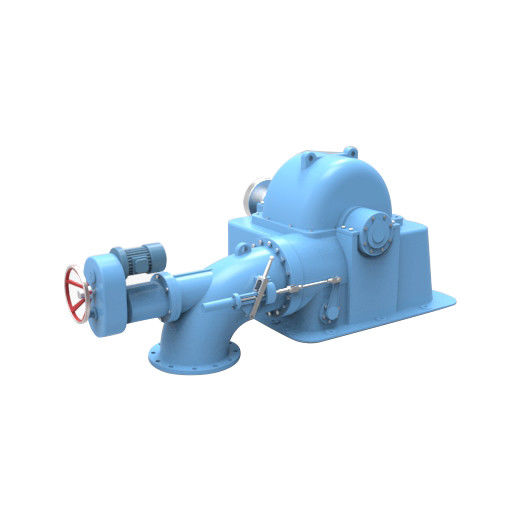

micro hydro power generator/Turgo Turbine Generator/200kw Turgo Turbine
Turgo Water Turbine is widely used in hydro power plants with the high head from 70m to 180m.Design water flow from 0.37m3/S to 0.757m3/S.
Turgo or called inclined-jet impulse turbine is a kind of impulse turbine.Its nozzle make the angle of 22.5°with the rotating plane of the runner.
| Water Head |
15m-300m
|
| Runner Diameters |
0.3m-1m
|
| Power Range |
100KW to 70MW
|
| Frequency |
50HZ/60HZ
|
| Generator Voltage |
400V, 800V, 6300V, 10500V
|
| Layout pattern |
Horizontal or Vertical
|
| Material(blades) |
Stainless Steel ZG0Cr13Ni4Mo
|
| Excitation |
Brushless or Static excitation system
|
| Generator Insulation |
F/F
|
| Lifespan |
30~50 years
|
| Manufacturer |
Deyang Dongsen Hydropower Equipment Co., Ltd.
|
